How does Hikoneb Oxybreath 10L work?
Hikoneb Oxybreath 10L separates the oxygen in the air from the nitrogen and delivers 1-10 L/min of oxygen. The oxygen purity is 92% at 1-9 L/min and 90% at 10 L/min (±3%).
The cooling fan is at the bottom of the housing and keeps the airflow steady. The operating temperature is 5-40 °C.
How does Hikoneb Oxybreath 10L monitor oxygen purity?
Hikoneb Oxybreath 10L has an oxygen monitor that gives a warning at low concentration.
- High oxygen: O2 > 82%
- Low oxygen: O2 < 82%
- Technical service required: < 75%
Which safety measure does Hikoneb Oxybreath 10L have?
Hikoneb Oxybreath 10L has a flame arrestor system with a fire safety valve at the oxygen outlet and on the humidifier bottle.
What are the technical specifications of Hikoneb Oxybreath 10L?
| Specification | Value |
|---|---|
| Operating voltage | 230 V AC |
| Frequency | 50 Hz |
| Power | 550 W |
| Oxygen flow | 1-10 L/min |
| Oxygen purity | 1-9 L/min 92% (±3%); 10 L/min 90% (±3%) |
| Oxygen outlet pressure | 90-130 kPa |
| Oxygen monitor | High oxygen O2 > 82% Low oxygen O2 < 82% Technical service required < 75% |
| Operating temperature | 5-40 °C |
| Gross weight | 25.7 kg |
| Net weight | 21.7 kg |
| Type | B |
| Class | II |

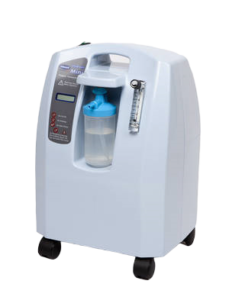

What is the difference between Hikoneb Oxybreath 10L and Oxybreath Mini?
Hikoneb Oxybreath 10L delivers up to 10 L/min of oxygen and draws 550 W. Hikoneb Oxybreath Mini has two models, a 3 L/min model and a 5 L/min model; Mini 5 consumes 265 W.
What is the warranty period of Hikoneb Oxybreath 10L?
Hikoneb Oxybreath 10L has a 2-year warranty, and the period can be extended up to 5 years. Hikoneb Oxybreath 10L is manufactured by Kare Medical and Analytical Devices Ltd. Co. at its factory in Sincan, Ankara.
