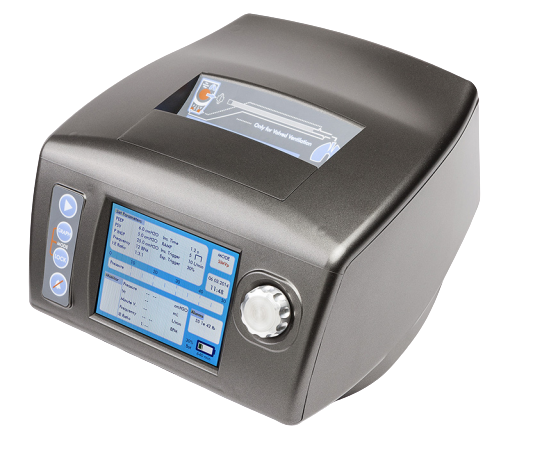

In which ventilation modes does KMV 5010 work?
KMV 5010 has five pressure modes and two volume modes. The pressure modes are CPAP ASB, PSV, aPCV, PCV and SIMVp; the volume modes are VCV and SIMVv.
How does volume targeting work on KMV 5010?
PSV, PCV and aPCV modes have a volume targeting feature. If the patient cannot reach the set target volume, KMV 5010 increases the pressure automatically.
The upper limit of the pressure increase is set between 3 and 10 cmH2O.
How long does the battery of KMV 5010 last?
The internal battery of KMV 5010 lasts 7 hours and the replaceable external battery lasts 15 hours. The durations are given at PEEP 5 cmH2O and IPAP 15 cmH2O settings.
KMV 5010 weighs 3.5 kg.
What data does KMV 5010 display and store?
The screen of KMV 5010 shows real-time pressure, flow and volume graphs. Pressure, respiratory rate and volume trend data is stored for up to one week.
The clinical menu and the patient menu are separate; the menu can be locked.
Which alarms does KMV 5010 give?
- High volume and low volume
- High respiratory rate and low respiratory rate
- High leak
- High Ti Max and low Ti Max
- High pressure difference
- Low battery
What are the technical specifications of KMV 5010?
| Parameter | Setting range | Applicable modes |
|---|---|---|
| PEEP | 0-20 cmH2O | CPAP ASB, PSV, aPCV, PCV, VCV, SIMVv, SIMVp |
| Pressure support | 0-50 cmH2O | CPAP ASB, PSV, SIMVv, SIMVp |
| IPAP | 3-50 cmH2O | aPCV, PCV, SIMVp |
| Respiratory rate | 4-40 bpm | PSV, aPCV, PCV, VCV, SIMVv, SIMVp |
| Inspiratory trigger | 1-10 L/min, automatic | CPAP ASB, PSV, aPCV, VCV, SIMVv, SIMVp |
| Expiratory trigger | 10-90%, automatic | CPAP ASB, PSV, SIMVv, SIMVp |
| Tidal volume | 50-2000 ml | VCV |
| Tidal volume | 50-2000 ml | SIMVv |
| I:E ratio | 1:0.3-1:4.0 | aPCV, PCV, VCV, SIMVv, SIMVp |
| Weight | 3.5 kg | All modes |
